This radiator is tested and certified to EN442 standards, meaning we can guarantee the quality and performance of this product. Ensure you check the 'Declaration of Performance' certificates as proof of quality.

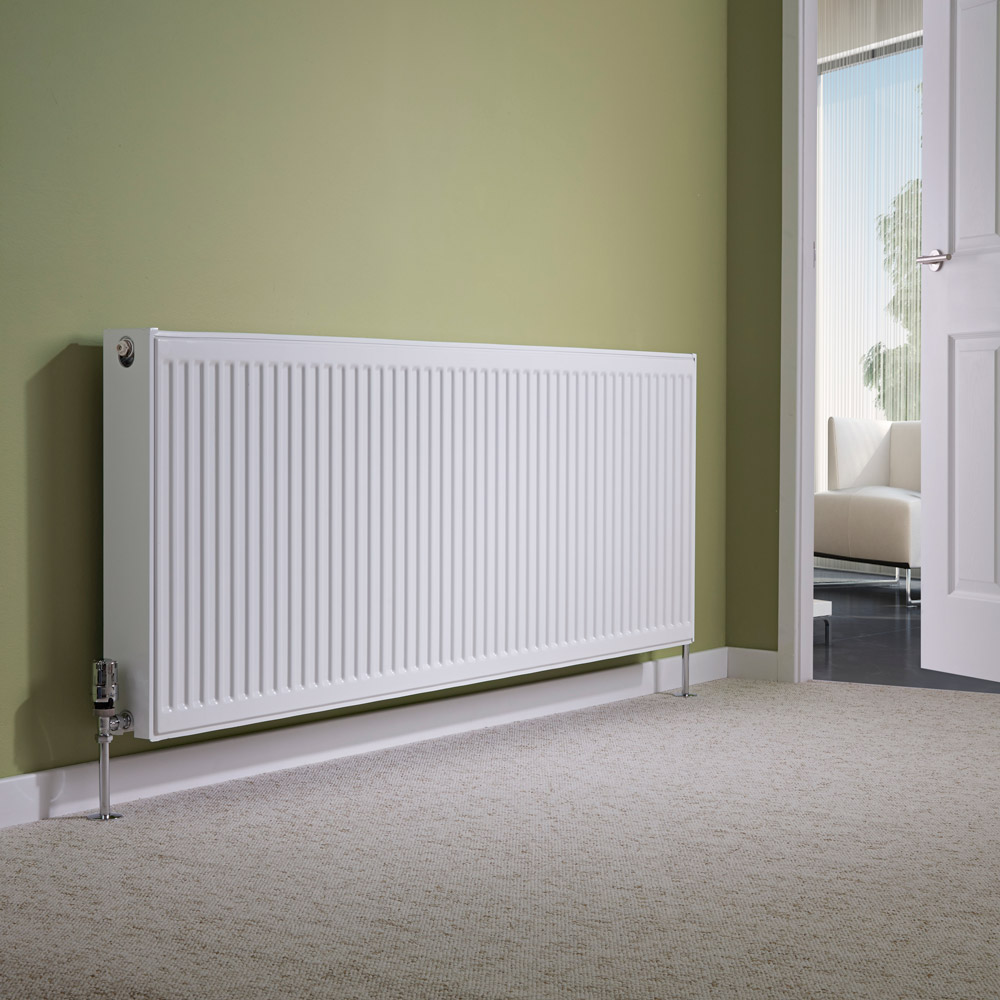

Milano Compact - Type 22 Double Panel Radiator - 600mm x 1600mm
The Milano Compact Type 22 double panel convector radiator offers the perfect design solution to allow you to enjoy luxurious warmth without compromising on style and space. Featuring an impressively high heat output, the durable solid steel radiator will heat any room to a comfortable temperature in no time and the white powder coat finish will complement any decor too.
Compact Type 22 Double Panel Convector Radiator Features:
- 600mm x 1600mm x 103mm
- 12,830 BTUs (3,760 Watts)
- White powder coat finish
- 10 year guarantee
- Tested and Certified BS EN 442 Standards
- CE Marked
- Includes Wall fixings, Wall plugs, Blanking and Bleed plug
Range | Eco |
---|---|
Orientation | Horizontal |
Style | Modern |
Category | Horizontal Designer Radiator |
Colour | White |
RAL Code | 9016 |
Installation Type | Central Heating |
Material | Steel |

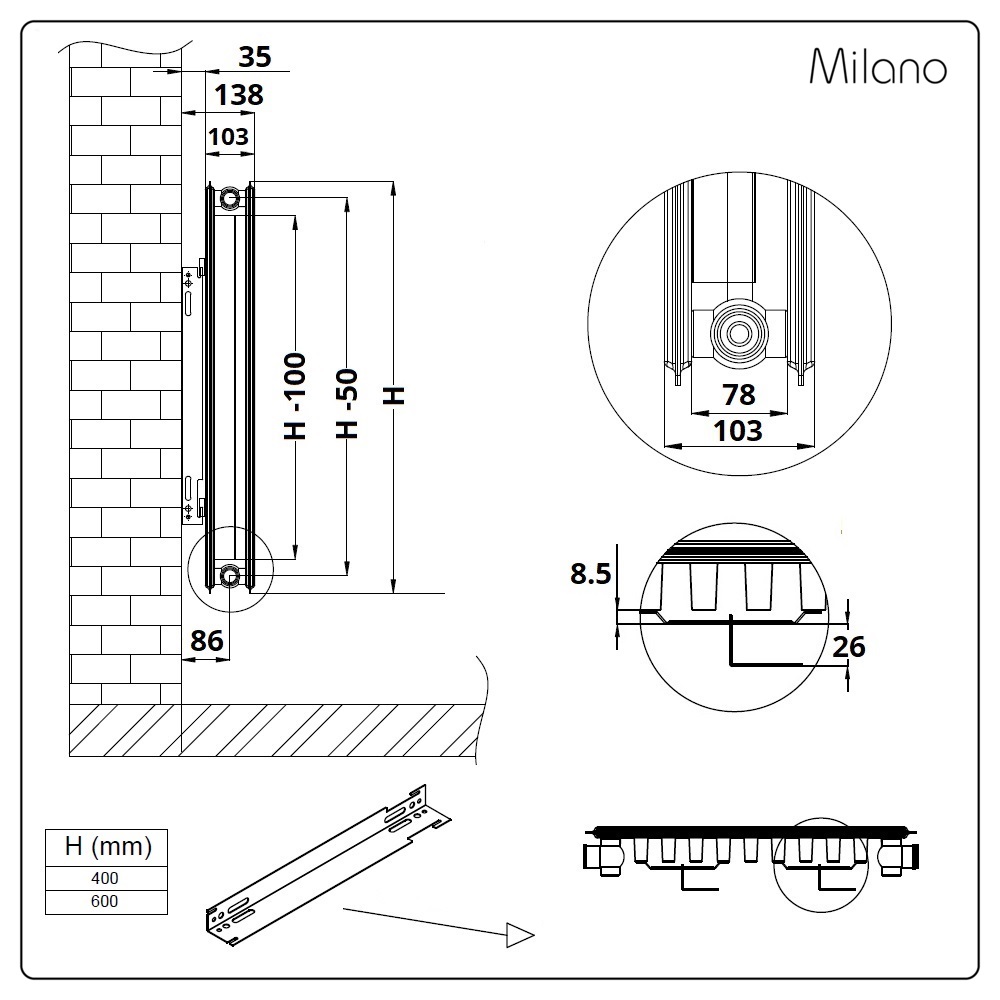

Floor to Centre of Tapping (mm) | Min. 300 |
Pipe Centres (mm) | 1690 (approx.) |
Wall to Centre Tapping (mm) | 74.5(87.5) |
Volume (litres) | 9.6 |
Inlet Connection | 1/2" |
Maximum Water Pressure | 10 bar |
BTU at Delta T30 | 4635 |
BTU at Delta T50 | 9082 |
BTU at Delta T65 | 12830 |
Watts at Delta T30 | 1359 |
Watts at Delta T50 | 2662 |
Watts at Delta T65 | 3760 |
Included | Fixing Pack, Vent and Bleeding Plug |
Height (mm) | 600 |
Width (mm) | 1600 |
Depth (mm) | 103 |
Projection from Wall (mm) | 126/139 |
Weight (kg) | 48.29 |
Certification | CE, EN442 |
Guarantee | 10 Years |
Bring luxurious warmth into your home without losing out on both wall and floor space with this beautifully crafted Type 22 Double Panel Radiator from Milano.
Featuring a hardwearing white powder coat finish that is sure to match the style of any decor and complete with an outstanding heat output of 12830 BTUs per hour, this beautiful convector radiator is both stylish and practical and will heat any room to a comfortable and inviting temperature in no time at all.
Made from mild steel for added longevity, this double panel radiator is easy to install and will provide long-lasting warmth to your rooms for many years to come.
Please note: Outputs are stated at delta T30, T50 and T65. Additionally, valves are not included with these items, but can be purchased separately.
Top Tip
At BestHeating, we only use select designer brands that use 1.5mm premium gauge steel to ensure superior durability and years of reliable use, without holes or leaks developing.
Poor steel thickness indicates an inferior radiator. Many lesser products withhold this information, so check the weight. Steel radiators weighing less than others often use 1.2mm steel, which can be dangerous and struggle to cope with high pressure UK systems.
A company that has confidence in its product will offer a longer guarantee than those that don't. Use the length of guarantee as an indicator of quality!
